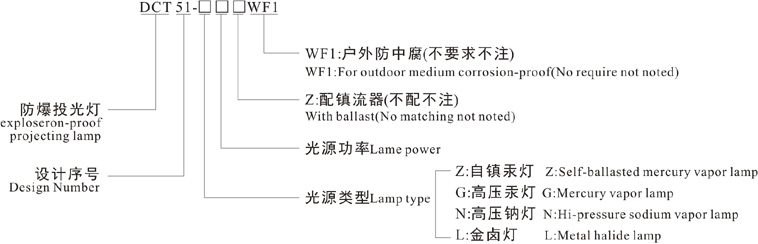

型號含義 Model implication
適用范圍 Application
1、適用于1區，2區危險場所。
2、適用于ⅡA、ⅡB、ⅡC類爆炸性氣體環境。
3、可配裝汞燈、高壓鈉燈、金鹵燈。
注:要求ⅡC類時請注明。
1、Can be used in Zonea 1 and2 dangerous places.
2、Can be used inⅡA、ⅡB、ⅡC group explosive atmosphere.
3、Suitable for incandescent lamp.
Notice:Please note if need ⅡC group.
產品特點 Features
1、鑄鋁合金外殼，壓鑄成形，表面噴塑。
2、燈體可在水平旋轉360°，仰角在+90°至-60°內可調。
3、反射罩采用拋物面形狀，反射率高，針對250W功率設有調焦機構，可實現遠近調節，過光時，射程能達100m。
4、有較強的防水性能，可使用于船舶或石油平臺等有較高防護要求的場所供照明之用。
5、電纜布線。
6、符合GB3836-2000，IEC60079標準要求。
1、Diecasted aluminium alloy shell with plastic-sprayed surface.
2、The lamp boby can be rotated 360°levelly and adjusted from+90°to-60°lelvately.
3、The reflector uses paroboloid shape, high reflectivity, aim at 250W power, it has adjusting focus organization can realize hear and ofr adjustment, it can reach 100m when it is far hight.
4、With high performance of water-proofing and applicable to use in the place to illuminate that have higher protection demand, such as ship, petroleum platform, etc.
5、Suitable for cable wiring.
6、Suitable for GB3836-2000, IEC60079 standard request.

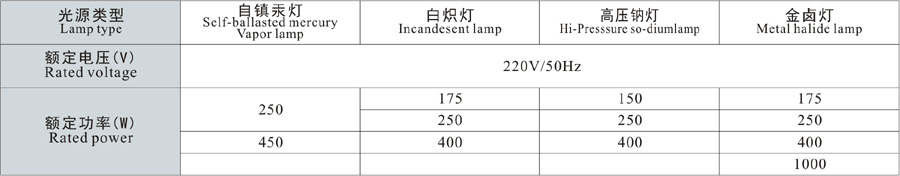

主要技術參數 Main technical parameters
配用光源 Supplied with lamps

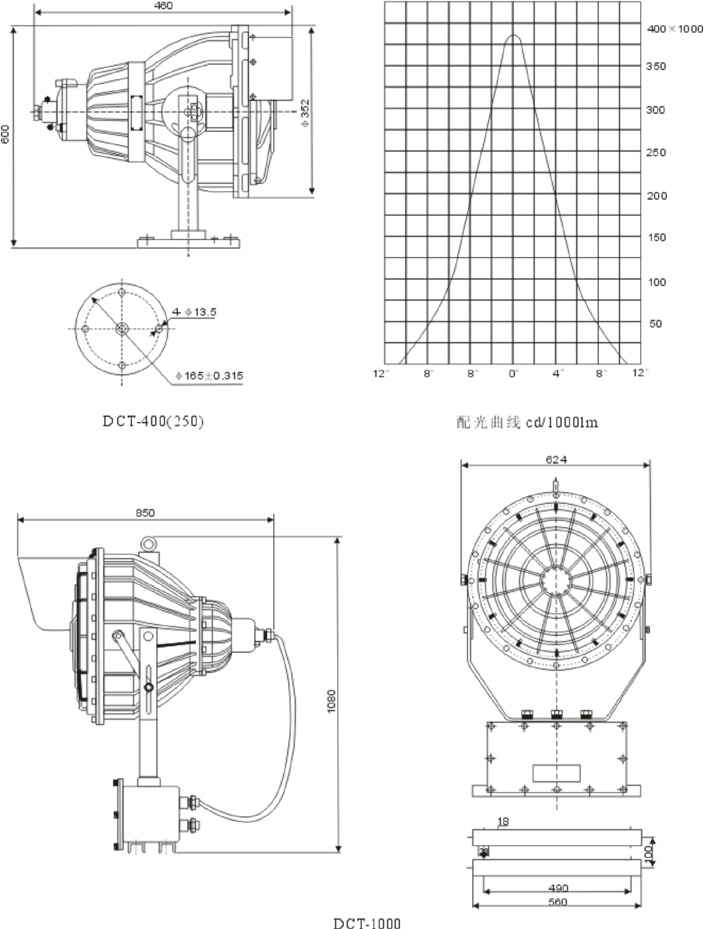

外形及安裝舉例 Outline and mounting example
